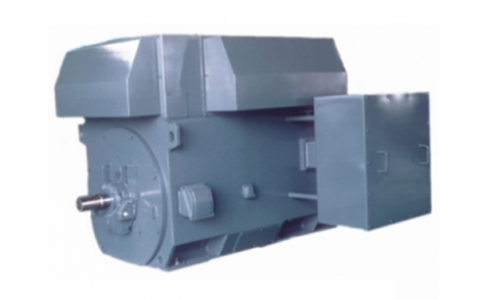

Semi-enclosed steel housing high voltage motor

TECO semi-enclosed steel housing motor models and parameters, high voltage motors use TECO-Westinghouse insulation system, VPI vacuum impregnation, imported Nippon Steel silicon steel sheets. Related motor models are: ASZK (formerly ASCK) / AMZK (formerly AMCK) / ANZK (formerly ANCK)

Brand： TECO
Type： ASZK(ASCK)/AMZK(AMCK)/ANZK(ANCK)

Detailed information

TECO semi-enclosed steel housing motor product parameters:

TECO motor model: ASZK (ASCK) / AMZK (AMCK) / ANZK (ANCK)
Output power: 220~6300kw (3KV), 150~5600kw (6KV), 400~3550KW (10KV)
Number of poles: 2, 4, 6, 8, 10, 12
Rated frequency: 50HZ, 60HZ
Rated voltage: AC 3000V, 6000V, 10000V
Frame size: 355~800
Protective structure: ODP: IP23, IP24
Insulation grade: F Class
Cooling method: IC01
Product description: TECO semi-enclosed steel housing motor model and parameters, high voltage motor adopts TECO-Westinghouse insulation system, VPI vacuum impregnation, imported Nippon Steel silicon steel sheet. For more details or special requirements, please contact us.
