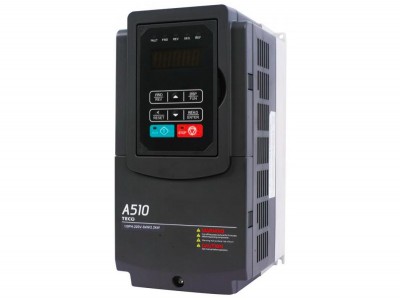

A510 series inverter

Product Features of TECO Inverter A510 Series

1. Equipped with TECO’s latest high-performance current vector core control technology.

2. Simple parameter switching can drive IM, IPM and SPM motors.

3. One machine integrates six major motor control modes: V/F, V/F+PG, SV, SLV.PMSC.PMSLV*.

4. Adopt the latest 32bit MCU and ASIC dual-core control architecture.

5. The dual-rated design can be applied to both light-load and heavy-load applications.

6. Four-quadrant torque control capability with speed, torque, and position control modes.

7. Advanced rotary and static motor Auto-Tune function.

8. Unique intelligent overvoltage suppression can avoid instantaneous load energy recirculation and tripping.

9. Built-in marked Modbus RTU communication protocol.

10. Supports the expansion of various communication modules such as Profibus-DP, DeviceNet, and Ethernet.

11. Integrate advanced software and hardware functions such as PLC, PID, and safety stop.

12. Support copy module to copy software parameters and settings.

13. Equipped with Soft-PWM modulation technology, which effectively reduces the harsh noise of the motor at low carrier frequencies.

14. Comply with international CE, UL, RoHS standards and IEC/EN61800-3 an

The high-performance current vector inverter can significantly reduce the adjustment time through Auto-tune technology and is easy to install. It has a dual-rated design + six motor control modes. A single inverter can also correspond to IM, IPM, and SPM motors. Various combinations allow you to The machine can handle various tension, position, speed, and torque light and heavy load applications, and complies with CE and UL international safety certifications.

1. 220V model

    Power range: 0.75～110KW single phase/three phase

    Input voltage: 200V～240V

2. 440V model

    Power range: 0.75V～315KW three-phase

    Input voltage: 380V～480V

3. Protection level: IP00/IP20

4. International certification: UL, CE
