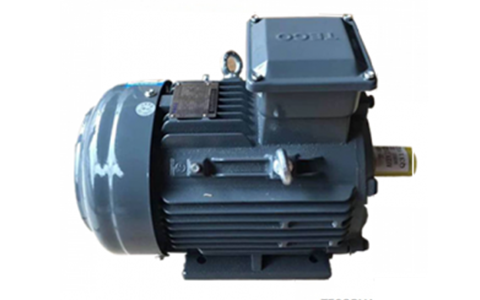

GB3 Energy Efficient Motor

The explosion-proof motor model TEV3 developed and produced by WUXI TECO Electric & Machinery Co., Ltd. complies with the national third-level energy efficiency standard (IE3/GB3) and can be driven by a general power supply or an inverter.

Brand： TECO

Type： TEV3(AEEV3N/AEUV3N)

TECO GB3 Energy Efficient Motors TECHNICAL DATA:

Kind of Motors：Squirrel - Cage Induction Motors ( SCIM ).
Design Standards：IEC/GB
Voltages：380V
Frequency：50Hz
Output Range：0.55kW ~400kW.
R.PM.(Syn.)：3000~750 RPM.(2~8 Poles )
Time Duty：Continuous.S1,S.F.: 1.0.
Frame Nos.：80M~355C.
Protection Enclosure：Totally Enclosed ( IP 55 ).
Cooling Method：Self External Fan,Surface Cooling ( IC 411).
Mounting：
AEEV3N:Horizontal Foot Mounted B3 ( IM 1001)
AEUV3N:Horizontal Flange Mounted B5 ( IM 3001)
AEEV3N:Horizontal Foot And Flange Mounted B35( IM 2001）
AEUV3N:Vertical Flange Mounted,Shaft Down V1 ( IM 3011）

TECO GB3 Energy Efficient Motors Application：

Environment Conditions：
Place : Shadow，Non-Hazardous.
Ambient Temperature :-15 ~40℃
Humidity : Less Than 90%RH (Non-Condensation )
Altitude : Less Than 1,000 Meters .
PowerSource Conditions：Voltage: +10%,Frequency : 5%，and 10% Max.of Combined Voltageand Frequency. But Frequency Variation Does Not Exceed 5% .
Method of Starting：Full Voltage Direct On Line or Y -A Starting .
Drive Method：BeltService，However,2 Pole 45 kW and Up ,4、6、8Pole F# 280 and Above，Direct-Coupling Service Only.
Direction of Rotation：CW According to IEC Definition,Suitable For Bi - Directional Operation
